Steel Balls

product

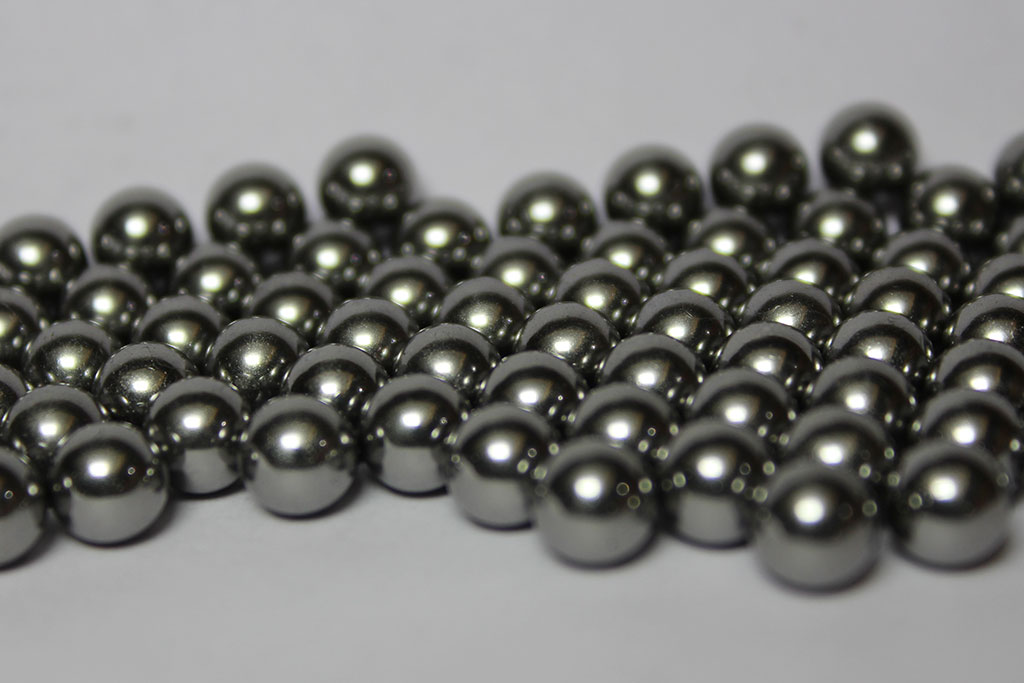

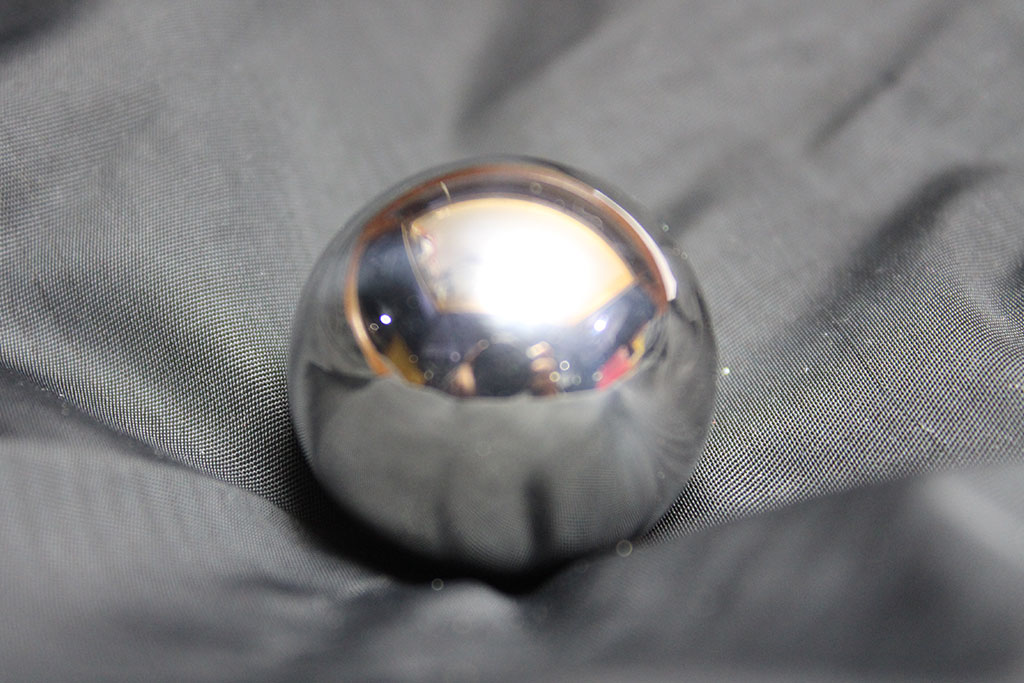

SKP Bearing has diversified its product line in manufacturing of steel Balls. The ball unit was incepted in February 2018 since then has been fully functional i manufacturing of bearing grade steel balls. The units has machines of national make,Geniss make,SKF-Sweden make, Backlite machines, in-house heat treatment facility to manufacture G5 and G10 grade balls, ranging from 7/32" to 7/8" size.

In today's scenario quality is at most important and thus SKP ball unit has inspection and control at every stage of the process. On and above that a standard room for checking the parameters has been installed which has instruments like-

  • Metallurgical Microscope with Image Analyzer
  • Mould Making Stations
  • Ball Scanning Equipment (aviko)
  • Waviness Tester
  • Crushing Load Tester
  • Roundness Tester
  • Roughness Tester
  • Microscope
  • Hardness Tester
  • Digital Micrometre
  • Gauge Checking Instruments with Range of 0.1µm
BALL RANGE
Size(Inch) Size(mm)   Size(Inch) Size(mm)   Size(Inch) Size(mm)   Size(Inch) Size(mm)
7/32” 5.556 3/8” 9.525 17/32” 13.494 23/32” 18.256
15/64” 5.953 -- 10 -- 14 3/4" 19.05
-- 6 13/32” 10.319 9/16” 14.288 25/32” 19.844
¼" 6.35 7/16” 11.113 -- 15 13/16” 20.638
17/64” 6.747 29/64” 11.509 19/32” 15.081 27/32” 21.431
9/32” 7.144 15/32” 11.906 5/8” 15.875 -- 22
5/16” 7.938 -- 12 21/32” 16.669 7/8” 22.225
-- 8 31/64” 12.303 11/16” 17.463
11/32” 8.731 ½” 12.7 -- 18
