Full Complement Needle Rollers for Maximum Load Carrying Capacity

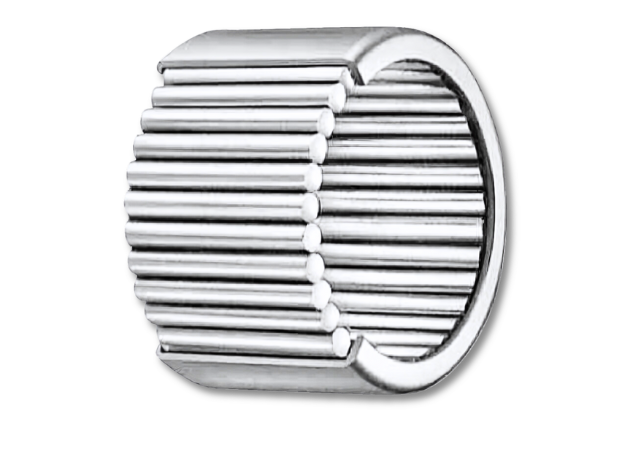

Full Complement Needle Rollers incorporate the highest possible number of needle-shaped cylindrical rolling elements within a bearing assembly. Unlike caged configurations, these arrangements do not contain a separator, allowing additional rollers to occupy the available space. This construction delivers exceptional radial load carrying capability for demanding operating conditions.
SKP Bearing Industries manufactures Full Complement Needle Rollers suitable for heavy-duty industrial applications where substantial load support takes priority over operating speed.
Product Overview
Full Complement Needle Rollers are designed to accommodate elevated radial loads by maximizing the quantity of rolling elements within the assembly. The absence of a cage increases contact area and load sharing capability, making these components suitable for equipment subjected to continuous heavy-duty operation.
These rolling elements are widely utilized within industrial presses, mining equipment, steel processing systems, heavy-duty motors and large-scale machinery.
Technical Specifications

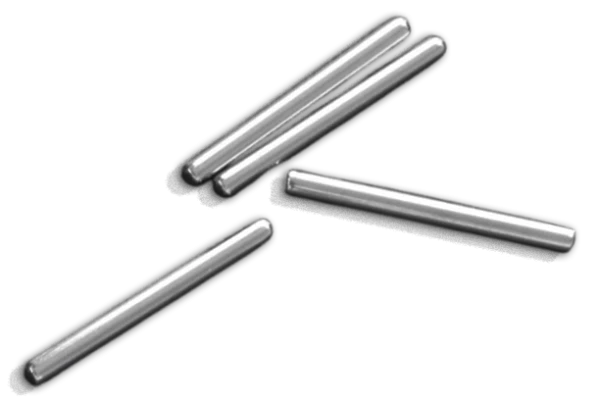

Available Types
| Type | End Configuration | Diameter Range (D) | Length Range (L) |
|---|---|---|---|
| BP | Flat Unground Ends | 1 mm to 7 mm | 3 mm to 100 mm |
| BR | Rounded Ends | 1.5 mm to 7 mm | 5 mm to 50 mm |
| BPM | Flat Ground Ends | 2.5 mm to 10 mm | 4 mm to 50 mm |
Dimensional Characteristics
| Parameter | Specification |
|---|---|
| Roller Diameter | 1 mm to 10 mm |
| Roller Profile | Cylindrical |
| Arrangement | Full Complement |
| Contact Type | Line Contact |
| Load Direction | Radial |
| Diameter-Length Ratio | Less than 1:3 |
| Cage Presence | No Cage |
| Roller Quantity | Maximum Possible |
| Surface Finish | Application Specific |
| Tolerance Class | Customer Requirement Based |
Manufacturing Features
- Maximum roller population
- Superior radial load support
- Increased contact area
- Enhanced load sharing
- Compact bearing profile
- Suitable for demanding operating environments
Key Advantages
- Exceptional Load Capacity: The higher number of rolling elements enables substantial radial load accommodation compared to conventional bearing arrangements.
- Efficient Space Utilization: A compact radial cross-section allows installation within restricted assembly dimensions.
- Improved Load Distribution: Additional rolling elements contribute to balanced load sharing throughout the bearing assembly.
- Structural Stability: Suitable for applications subjected to heavy operating conditions and continuous service requirements.
- Heavy-Duty Capability: Frequently selected for equipment operating under elevated load conditions.
Common Applications
Heavy Engineering Equipment
● Forging machinery
● Metal forming systems
● Rolling mill assemblies
Mining Equipment
● Screening systems
● Material processing equipment
● Bulk handling machinery
Steel Processing Systems
● Coil processing lines
● Finishing machinery
● Heavy-duty drive assemblies
Industrial Machinery
● Gear reduction units
● Cement plant equipment
● Power transmission systems
Why Choose SKP Bearing Industries?
-
Specialized Rolling Element Manufacturing
Extensive experience producing needle rollers for demanding engineering sectors. -
Modern Production Infrastructure
Advanced manufacturing technologies supported by comprehensive inspection systems. -
Customized Product Development
Dimensions, tolerances and technical specifications developed according to customer requirements. -
Quality Assurance
Rigorous quality controls implemented throughout production and inspection stages. -
Global Industry Presence
Supplying rolling elements to automotive, industrial, infrastructure, mining and engineering sectors across international markets.
Request Technical Assistance
Looking for Full Complement Needle Rollers for heavy-load applications?
Connect with SKP Bearing Industries for dimensional specifications, technical guidance and customized manufacturing solutions.
