High Load Capacity Needle Rollers for Compact Bearing Assemblies

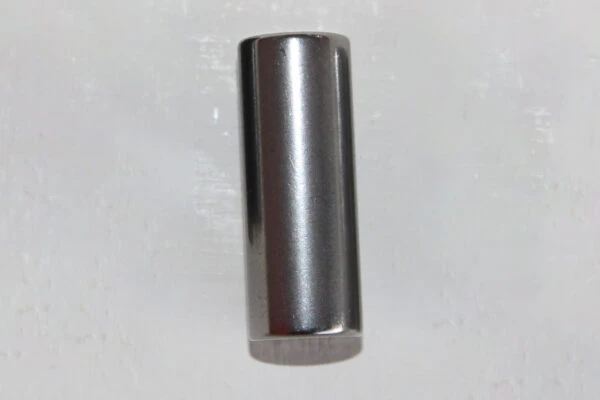

Single-Row Needle Rollers are widely utilized rolling elements designed for applications requiring substantial radial load-holding capability within limited installation space. Their elongated cylindrical geometry enables efficient load distribution while maintaining a compact bearing profile. SKP Bearing Industries manufactures Single-Row Needle Rollers with stringent dimensional control, surface finish consistency and material integrity suitable for demanding engineering applications.
Product Overview

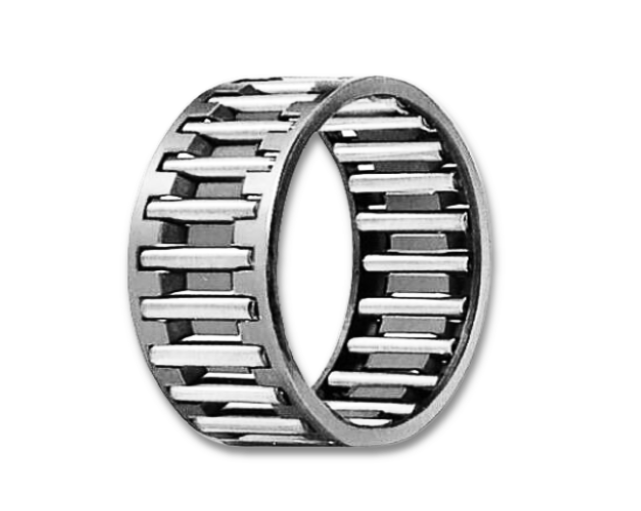

Single-Row Needle Rollers consist of a single arrangement of needle-shaped cylindrical elements operating within a bearing assembly. Due to their reduced diameter and extended length, these rolling elements provide a large contact area with raceways, contributing to enhanced load carrying characteristics and structural stiffness.
These components are widely used across automotive systems, agricultural equipment, industrial transmissions and power transmission assemblies.
Technical Specifications
Available Types
| Type | End Configuration | Diameter Range (D) | Length Range (L) |
|---|---|---|---|
| BP | Flat Unground Ends | 1 mm to 7 mm | 3 mm to 100 mm |
| BR | Rounded Ends | 1.5 mm to 7 mm | 5 mm to 50 mm |
| BPM | Flat Ground Ends | 2.5 mm to 10 mm | 4 mm to 50 mm |
Dimensional Characteristics
| Parameter | Specification |
|---|---|
| Roller Diameter | ≤ 10 mm |
| Diameter Classification | Needle Roller |
| Diameter to Length Ratio | Less than 1:3 |
| Geometry | Cylindrical |
| Contact Type | Line Contact |
| Installation Arrangement | Single Row |
| Surface Finish | Application Specific |
| Dimensional Tolerance | As Per Customer Requirement |
Manufacturing Features
- Uniform hardness distribution
- Superior roundness characteristics
- Controlled surface roughness
- Consistent dimensional accuracy
- Optimized load distribution capability
- Reduced radial envelope dimensions
Key Advantages
- Compact Cross-Section: Suitable for assemblies where installation space is restricted while maintaining substantial radial load support.
- Enhanced Rigidity: Line contact geometry contributes to improved stiffness within bearing systems.
- Efficient Load Distribution: The elongated roller profile distributes operating loads over a larger contact area.
- Versatile Integration: Compatible with transmissions, gearboxes, clutch systems, pumps and various rotating assemblies.
- Custom Manufacturing: Dimensions, tolerances and finishing requirements can be developed according to application specifications.
Common Applications
Automotive Systems
● Automatic gearboxes
● Differential assemblies
● Steering mechanisms
● Clutch systems
Agricultural Equipment
● Tractor transmissions
● Cultivation equipment
● Power take-off assemblies
Industrial Equipment
● Conveyor drives
● Material handling systems
● Packaging machinery
Engineering Machinery
● Machine tools
● Textile equipment
● Printing machinery
Why Choose SKP Bearing Industries?
-
Extensive Manufacturing Experience
Decades of expertise in producing rolling elements for domestic and international markets. -
Advanced Production Infrastructure
Modern manufacturing systems supported by quality inspection processes throughout production stages. -
Application-Specific Development
Customized dimensions and specifications developed according to customer requirements. -
Consistent Product Quality
Comprehensive quality controls ensure dimensional conformity and material consistency. -
Global Supply Capability
Serving automotive, engineering, industrial and infrastructure sectors across multiple geographies.
Request Technical Assistance
Looking for Single-Row Needle Rollers tailored to your application requirements?
Connect with SKP Bearing Industries for technical consultation, dimensional specifications and customized manufacturing solutions.
